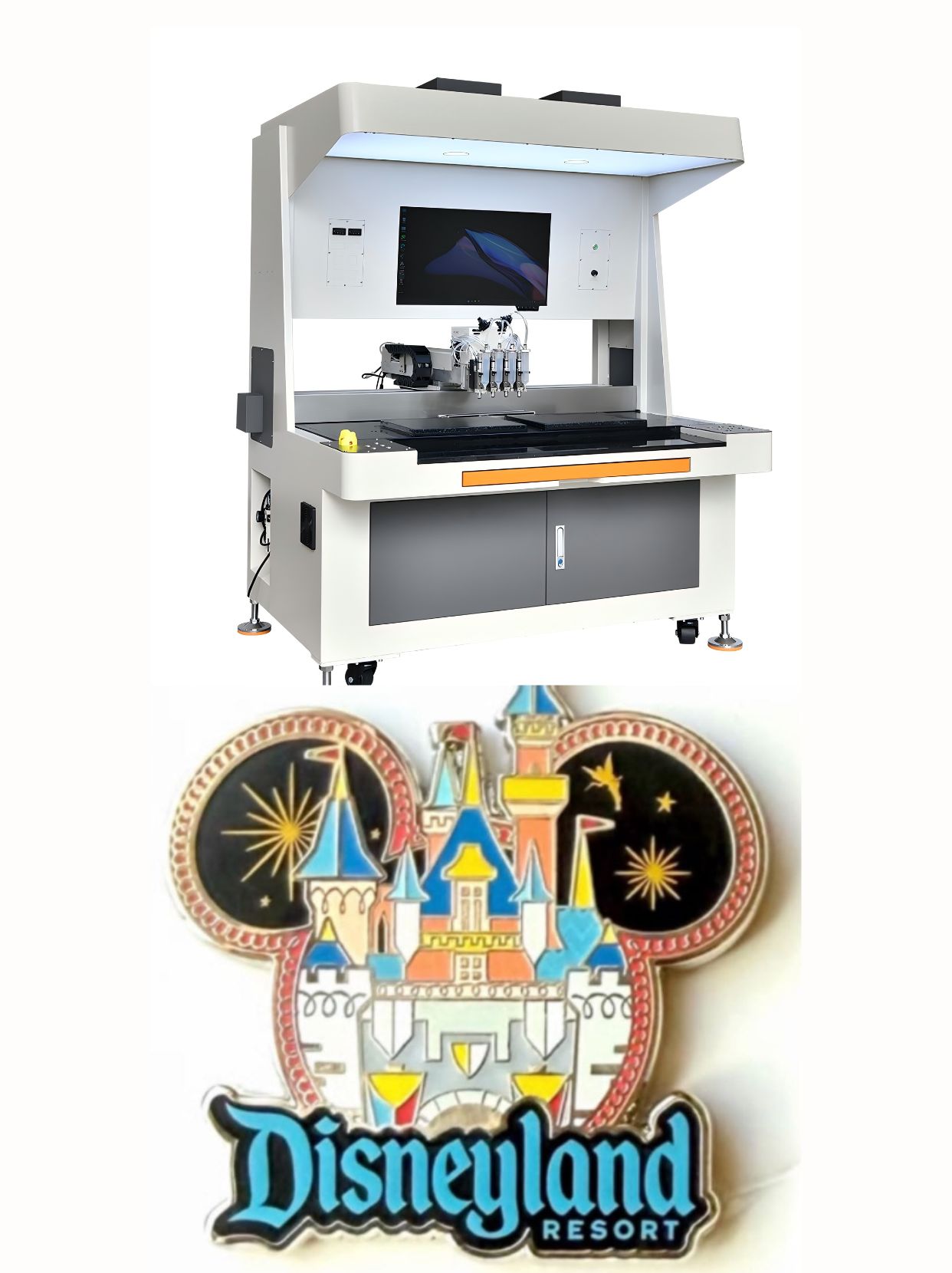

AI Visual Automatic Badge Coloring Machine
The AI Visual Enamel Pin Badge Filling Machine is an intelligent automated color-filling solution designed for enamel pins, metal badges, medals, nameplates and other products with complex or irregular-shaped outlines.
Featuring one-click design import, the machine allows operators to upload badge artwork directly into the control system. The AI software automatically recognizes product contours, borders, cavities and different color areas, then generates and optimizes the dispensing paths without requiring manual point-by-point programming.
Its advanced visual positioning system scans the actual location and angle of each badge, automatically correcting coordinate deviations before production. Adaptive path technology adjusts the dispensing direction, speed and filling sequence according to curved edges, sharp corners, narrow channels, isolated cavities and asymmetric shapes.
Product drawings, dispensing paths and process parameters can be saved as reusable production recipes, allowing repeat orders to be started quickly with one-click program loading.
With intelligent programming, visual recognition and automatic path generation, the machine significantly reduces setup time, simplifies operator training and improves filling consistency for customized and multi-color badge production.
Import the design, generate the path and start automatic badge filling with one click.
AI Visual Enamel Pin Badge Filling Machine
One-Click Design Import and Adaptive Dispensing Paths for Irregular-Shaped Badges
Traditional badge filling machines often require operators to manually draw dispensing paths, adjust coordinates and repeatedly test the program. This process becomes even more difficult when producing badges with irregular outlines, asymmetric cavities, curved edges or multiple isolated color areas.
The AI Visual Enamel Pin Badge Filling Machine simplifies the entire programming process through one-click design import, intelligent visual recognition and automatic path adaptation. Operators can import the badge design file directly, allowing the system to identify filling areas, generate dispensing paths and optimize the production program automatically.
Core Technology Overview
| Technology | Function | Production Benefit |
|---|---|---|
| One-Click Design Import | Imports badge artwork or production drawings directly into the control system | Reduces manual programming and shortens preparation time |
| AI Visual Recognition | Automatically recognizes badge outlines, cavities, borders and separated color areas | Improves recognition accuracy for complex badge designs |
| Adaptive Path Generation | Generates dispensing paths according to the actual shape of each filling area | Suitable for irregular, asymmetric and curved badge cavities |
| Automatic Path Optimization | Adjusts dispensing order, travel direction and filling sequence | Reduces unnecessary machine movement and improves efficiency |
| Visual Position Correction | Detects the actual position and angle of badges placed on the fixture | Compensates for placement deviation automatically |
| Multi-Color Area Recognition | Separates different color cavities according to the imported design | Supports efficient production of complex multi-color badges |
| Recipe Storage | Saves product drawings, dispensing paths and production parameters | Makes repeat orders easier and more consistent |
How One-Click Design Import Works
| Production Step | Traditional Method | AI Intelligent Method |
|---|---|---|
| Design preparation | Operator manually checks the badge drawing | Design file is imported directly |
| Path programming | Dispensing paths are drawn point by point | AI generates paths automatically |
| Color area separation | Operator identifies every cavity manually | Software recognizes different filling areas |
| Position calibration | Coordinates are adjusted manually | Camera automatically detects badge position |
| Trial production | Multiple tests may be required | Intelligent path optimization reduces repeated adjustments |
| Repeat orders | Program may need to be recreated | Saved recipes can be loaded with one click |
With the one-click design import function, operators do not need to manually teach every dispensing point. Once the badge artwork is imported, the software analyzes the graphic structure and converts it into an executable filling program.
Adaptive Path Technology for Irregular Badge Outlines
Irregular-shaped badges may contain sharp corners, narrow channels, curved borders, isolated cavities and asymmetrical decorative areas. A fixed dispensing path cannot handle all these structures effectively.
The machine’s adaptive path technology analyzes the geometry of each cavity and automatically selects a suitable filling strategy.
| Badge Feature | Adaptive Path Strategy |
|---|---|
| Curved outer outline | Generates a smooth path following the curvature |
| Sharp corners | Adjusts movement speed and dispensing volume near corners |
| Narrow filling areas | Creates a controlled centerline or micro-dispensing path |
| Large open cavities | Uses optimized multi-line or contour filling paths |
| Isolated small areas | Plans independent dispensing points automatically |
| Asymmetric designs | Generates paths based on the actual cavity geometry |
| Multiple separated colors | Arranges the dispensing sequence by color and location |
| Rotated badge placement | Corrects the path according to the detected angle |
From Imported Drawing to Automatic Production
| Stage | Intelligent Processing |
|---|---|
| 1. Import the Design | Upload the badge artwork or production file into the software |
| 2. Recognize the Graphic | AI identifies outlines, borders and color-filling areas |
| 3. Generate the Path | The system automatically creates dispensing paths |
| 4. Optimize the Sequence | Filling order and machine movement are optimized |
| 5. Scan the Workpiece | The visual system detects the actual badge position |
| 6. Correct the Coordinates | The program adapts to position and angle deviations |
| 7. Start Production | The operator starts automatic filling with one command |
| 8. Save the Recipe | All settings can be stored for future repeat orders |
Key Advantages for Badge Manufacturers
| Advantage | Value for the Factory |
|---|---|
| Less Manual Programming | Reduces dependence on experienced programming technicians |
| Faster Product Changeover | New badge designs can be prepared more efficiently |
| Better Adaptability | Supports irregular, curved and complex badge structures |
| Consistent Filling Paths | Reduces differences caused by manual path creation |
| Easier Operator Training | A visual interface simplifies daily machine operation |
| Faster Repeat Production | Saved programs can be reused for recurring orders |
| Improved Production Flexibility | Suitable for both customized samples and batch orders |
| Reduced Positioning Errors | Visual correction compensates for fixture and placement deviations |
Suitable Badge Applications
| Product Category | Typical Products |
|---|---|
| Custom Enamel Pins | Brand pins, company logo pins and promotional badges |
| Irregular-Shaped Badges | Animal shapes, cartoon characters and creative outlines |
| Anime Merchandise | Character badges, fan collectibles and limited-edition pins |
| Sports Medals | Marathon medals, event badges and club emblems |
| Corporate Badges | Employee badges, anniversary pins and recognition awards |
| Souvenir Products | Tourist badges, landmark pins and cultural merchandise |
| Fashion Accessories | Decorative pins, bag accessories and clothing badges |
| Metal Labels | Nameplates, decorative tags and branded metal plates |
Traditional Programming vs. AI One-Click Import
| Comparison Item | Traditional Badge Filling Machine | AI Visual Badge Filling Machine |
|---|---|---|
| Drawing input | Mainly manual programming | One-click design import |
| Path creation | Manually drawn by operators | Automatically generated by AI |
| Irregular outline processing | Requires repeated adjustment | Adaptive path generation |
| Workpiece positioning | Depends heavily on fixtures | Visual recognition and correction |
| New product setup | Time-consuming | Faster and more intelligent |
| Operator requirements | Experienced technician required | Easier for ordinary operators |
| Repeat order setup | Manual file searching or recreation | Recipe storage and one-click loading |
| Complex design adaptability | Limited | Designed for complex and irregular badges |
Make Complex Badge Filling Simpler
The AI Visual Enamel Pin Badge Filling Machine transforms complex badge programming into a more intelligent and standardized process.
Through one-click design import, the machine automatically converts badge artwork into dispensing paths. Its visual system identifies the real workpiece position, while the adaptive path algorithm adjusts the filling program for curved, asymmetric and irregular-shaped cavities.
For badge manufacturers handling frequent product changes, customized designs and complex multi-color orders, this intelligent solution helps simplify programming, improve production consistency and reduce reliance on manual operation.
Import the Design. Recognize the Badge. Generate the Path. Start Production.
Contact us to test your irregular-shaped badge samples and learn how AI visual filling technology can improve your production process.
